YZ-114PRO Yokomo – Charger/Discherger And Cycler (AC100V/DC12V)

•
  The choice of the AC / DC charge and discharge vessel
  with a fully-featured necessary in helping you to enjoy the RC car debuts!
  Even while the input power source handy AC100V, I realize the high output
  charging current of 10A. Response to a variety of battery, discharge function,
  such as balance charging function, a useful feature is the high-spec charging
  and discharging of the vessel full. Further, the waiting Age, during charging,
  in addition to the charging at the end of function of the color of the backlight
  is changed depending on the type of the battery is equipped. Graphical representation
  of the charge and discharge also convenient, it is safe designed in such a
  way that you can understand the charge state intuitively.

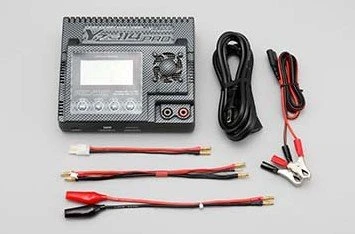

Sets Includes:

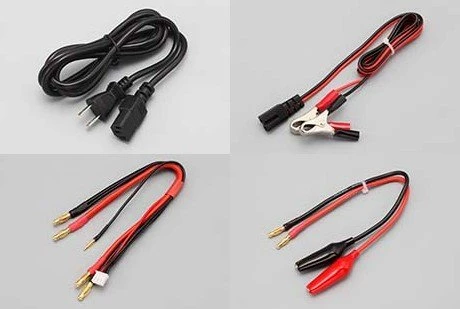

• Charge and discharge vessel body Main body of battery
  charger x1
• AC100V power cable Power supply cable (AC100V) x1
• DC12V power supply cable Power supply cable (DC12V) x1
• 7.2V battery connector for 7.2V battery connect cords
  x1
• Mini Battery connecting cord Mini battery connect cordes
  x1
• Banana connector with connecting cord Banana connector
  cords x1
• Alligator connector Clip connector x1

Specials Features:

• Charge Current: 10A
• Discharge current: 5A
• Input power: AC100V ~ 240V DC11V ~ 15V
• Compatible Battery: Li-po · Li-fe 1-cell to 5
  cell Ni-MH · Ni-cd 1-cell to 14 cell
• Balance charging function equipment
• The graph displays the charging and discharging
• Battery cell count automatic recognition
• Standby, charging time, charging at the end, the color
  of the backlight is changed by the charging mode, can be checked at a glance
  the state.

Features:

• Power / Power supply DC11-15V AC100-240V (50/60Hz)
• Rechargeable battery corresponding cell number / Battery-number
  of the cells
• Li-po 1-5cell (3.7-18.5V)
• Li-fe 1-5cell (3.3-16.5V)
• Ni-cd/Ni-MH 1-14cell (1.2-16.8V)
• Charging current / Charge current
• Li-ion/Li-po/Li-fe 100-10000mAh 1C (0.1A-10.0A)
• Ni-cd/Ni-MH 0.1-10.0A (0.1A step)
• Discharge current / Discharge current Ni-cd/Ni-MH/Li-ion/Li-po/Li-fe
  0.1-5.0A (100mAh step)
• Charge limit / Charge limit 85W
• Discharge limit / Discharge limit 20W
• Delta peak voltage / Delta peak voltage Ni-cd/Ni-MH 3-25mV/cell
• Display / Display 128 x 64/7 color LCD Backlight
• Dimensions: 172 × 154 × 58mm
• Please note the main Power cord is for a Japanese Style
  plug socket
