DP-RSR Yokomo – 1/10 Scale EP RC Drift Car Kit – RS R JZA80 Supra

This model version of the 2006 series RS R SUPRA was driven by professor Manabu Orido, famous for his no compromise driving with this 1/10th scale electric radio controlled car assembly kit.

All of the essential features have been miniaturized to allow thw alluring aspects of drifting to be enjoyed with a radio-controlled car.

The underpinnings are compromised of Yokomo’s newly developed MR-4TC SD molded type chassis (which features an advanced racing suspension geometry for superior handling performance), and a highly efficient shaft drive full-time 4wd system. The essential keys to drifting, such as drift angle and distance, are enhanced by the Yokomo Super Drift tires (patent pending). And for improved performance, a slew of optional parts are available to tune the chassis, just like it’s full-size counterpart.

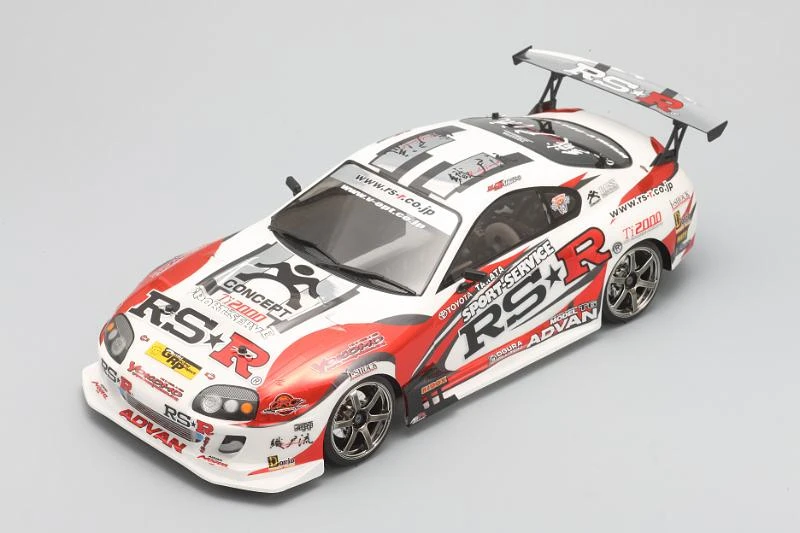

The detailed exterior begins with an aggressively styled body, GT-type wing, aero mirrors, and even wheels that have been carefully detailed to replicate the scale look of the original. In addition to the realistic drifting performance, this kit can also be proudly displayed as a static model.
(Unassembled kit with clear body.)

About the Model

• High efficiency shaft drive full-time 4WD system (sealed transmission cases)
• High strangth molded composite chassis
• Fully adjustable double-wishbone suspension
• Turnbuckle tie-rods for adjustable alignment
• Solid axles for superior drift performance (front & rear)
• Front universal driveshafts, rear dogbones
• Plastic shock absorbers (with adjustable damping)
• Front urethane bumper, rear bumper
• Aluminum die-cast clamp type motor mount
• Spur gear(70T)
• Aluminum pinion gear (30T)
• Ball bearings (17pcs)

Exterior

• RS R SUPRA Body
• GT Wing
• RS R SUPRA Design & Detailed Decals
  (Lights, tail light, Window trim)
• Window paint masking
• Accessory parts (Exhaust muffler, Brake rotors, Brake calipers, Wipers, Aero mirrors)
• Super Drift tires for superior drift distances and angles (Patent pending)
• YOKOHAMA AVS MODEL-T6 wheels

SPEC

• Scale: 1/10
• Overall body length: 452mm
• Overall body width: 194mm
• Overall height: 120mm
• Overall chassis width: 194mm
• Wheelbase: 258mm

Separately Required Items

• Transmitter
  (recommanded Futaba 2PHKA 2 Channel AM 27MHz w/ R162JE receiver & S3003 servo x 2)
• Receiver
• Servo
• Motor
  (recommanded Yokomo DRIFT D-1SP 19T Motor or DRIFT D-1M 15T Motor)
• ESC
  (recommanded Futaba MC231CR ESC w/ Reverse 20+T Speed Controller)
• Battery Pack
• Battery Charger
• Spray-Paint
